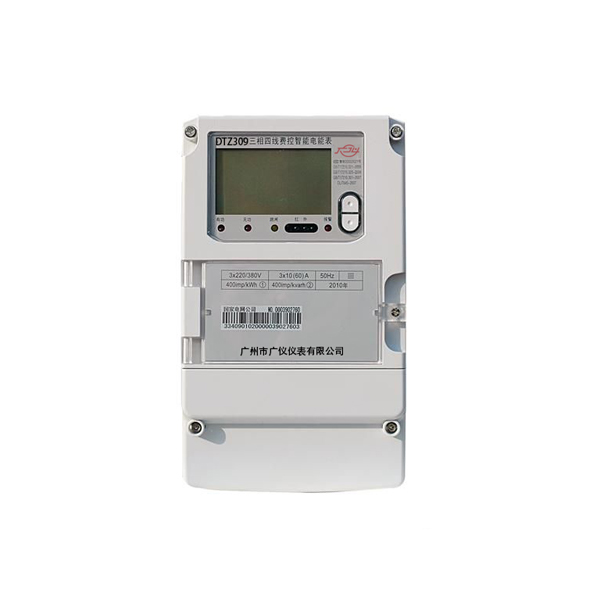

CNDTZ309 three-phase four-wire charge control energy meter smart energy meter
Scope of application
1, the measurement function: measuring positive and negative active, capacitive reactive power and round quadrant reactive energy;
2, time-measurement: with four rates, 12 time zones, divided into 10 days a day, a total of 4 sets of day time to choose from;
3, the monthly statistics of electricity: a total power and time sharing power and the total function of the previous day and last month's total electricity consumption measurement function;
4, the maximum demand: record the maximum demand and its emergence time, demand cycle default is 15 minutes, slip time default is 1 minute;
5, clock, calendar function (summer time 10 years automatic conversion)
6, power failure display (optional)
7, time recording function: record the occurrence time of a variety of events and the current state, such as phase failure, power failure, programming, reset, battery usage,
8, communication function: can use RS485 communication interface or infrared port, and handheld computers, computers or infrared remote control to communicate.
Main technical parameters and specifications
|
Model and name |
Accuracy (level) |
Reference voltage (V) |
Calibration current (A) |
Wiring |
Packing size （mm） |
Quantity (only) |
|
DTSD309 Three-phase four-wire multi-function Meter (Simple multi-function) |
1.0 2.0 |
3×57.7/100 3×220/380 |
1.5(6) |
Mutual inductance |
|
|
|
5(20)，10(40) 15(60)，20(80)，30(100) |
Direct type |
|||||
|
DTSD309 Three-phase four-wire multi-function Meter (Full Function) |
1.0 2.0 |
3×57.7/100 3×220/380 |
1.5(6) |
Mutual inductance |
||
|
5(20)，10(40) 15(60)，20(80)，30(100) |
Direct type |
|||||
|
DTZ309 Three-phase four-wire charge control Smart energy meter |
1.0 2.0 |
3×57.7/100 3×220/380 |
1.5(6) |
Mutual inductance |
|
|
|
5(20)，10(40) 15(60)，20(80)，30(100) |
Direct type |
|
standard |
Meet the JB / T7656-1995, DL / T614-1997 requirements |
|
Pulse constant |
By nameplate standard |
|
Reference frequency |
50HZ±5% |
|
Clock error |
≤0.5S/d |
|
Mean time between failures (MTBF) |
≥5×10?h |
|
Power consumption |
<2W，10VA |
|
Normal operating voltage |
（0.9~1.1）Vh |
|
Limit operating voltage |
（0.7~1.2）Vh |
|
Ambient temperature |
（-25~55）℃ |
|
Limit temperature |
（-25~70）℃ |
|
Relative humidity |
≤75% (annual average temperature) |
|
Design life |
15 years |
|
Spare battery life |
10 years |
|
Pulse output parameter |
Pulse width (80 ± 20) ms Voltage amplitude ≤ DC24V Passive |
